Vertical Flammability Test Apparatus , Flammability Testing Equipment Standard IEC60332-1

Brand Name : VOUCH

Model Number : 5704

Certification : ISO

Place of Origin : CHINA

MOQ : 1SET

Price : NEGOTIABLE

Payment Terms : TT LC

Supply Ability : 20SETS PER MONTH

Delivery Time : 33DAYS

Packaging Details : STANDARD EXPORT WOODEN CASE

MATERIAL : SUS304STAINLESS STEEL

WORK POWER : 220V 50HZ

WARANTY : 1YEAR

PACKAGE : STANDARD EXPORT PACKAGE

PEICE : NEGOTIABLE

SAMPLE : STANDARD SAMPLE

Contact Now

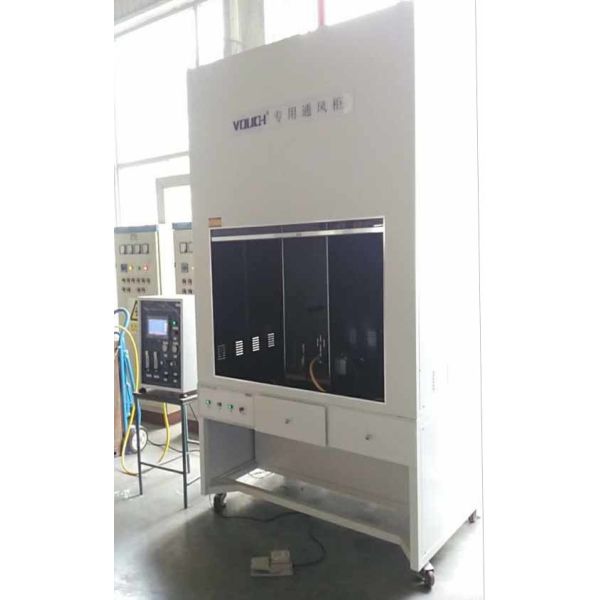

Flammability Test Apparatus of Single Wire Vertical Combustion Tester

Feature:

  1. import time and temperature controller,digital display and box separat designed
  2. 2mm stainless steel molding by numerically control ,beautiful,durable
  3. Special used burner and clamp ,complete in accord with standard requirement
  4. Pneumatic type motor control,no need man operate

Technical data:

  1. Model:5704
  2. Execute standard:GB18380.11
  3. Test area size(mm) :320w*470d*1200h
  4. Flame height adjust:10-250mm
  5. Propane flow adjust: 100-1000l mm/min
  6. Air flow: 1-10l/min
  7. Flame temperature test: max1050degree
  8. Temperature rise timing:0-99h 59m 59.9s
  9. Flame angle adjust:0-45degree
  10. Application combustion time adjust range:0-99.99s
  11. Application combustion resolution:0.01s
  12. Temperature rise resolution:0.1s

Choose configure:

Model 5704
Test area size 320w*470d*1200h
Temperature rise timing

0-99h 59m 59.9s
Flame height adjust

10-250mm
Air flow

1-10l/min
